Applies to all Focusrite interfaces without Loopback
Most of our interfaces support Loopback, which allows you to record any audio mix back into your DAW/recording app.
To check if your interface does support Loopback, see the article below:
Which Focusrite interfaces feature Loopback?
If your interface doesn't support Loopback, follow below to create a 'manual loopback' with unused I/O on your interface.
This method only works on interfaces which support S/PDIF, or have 4 or more analogue inputs.
Connect the cables
S/PDIF
If your interface features a S/PDIF connection, connect an optical S/PDIF cable from the S/PDIF Out to the S/PDIF In port on your device.
This will create a stereo Loopback Mix, which we can configure in the Control Software.
Analogue I/O
To create a mono loopback, connect a 1/4 inch jack cable from an unused analogue output, to an unused analogue input on your interface.
To create a stereo loopback, connect a second jack cable from another unused analogue output on your interface, to another unused analogue input on your interface.
Configure the routing
Focusrite Control 2
S/PDIF
- Open Focusrite Control 2.
- Select Routing.

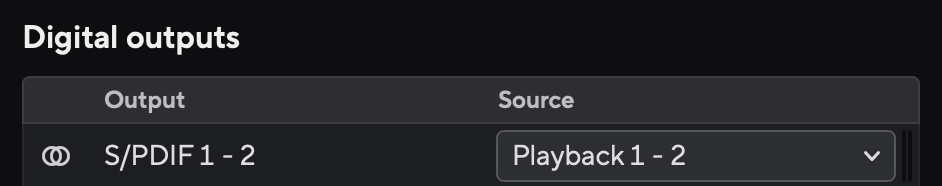

- Under Digital outputs, set S/PDIF 1-2 to the source in which you would like to loop back. In this instance, we'll use Playback 1-2.
- Open your DAW.
- Set the input of your DAW to the S/PDIF input on your interface. If you are unsure of this, please see the User Guide for your interface.
Audio should now be looped back into your DAW.
Analogue I/O
- Open Focusrite Control 2.
- Select Routing.

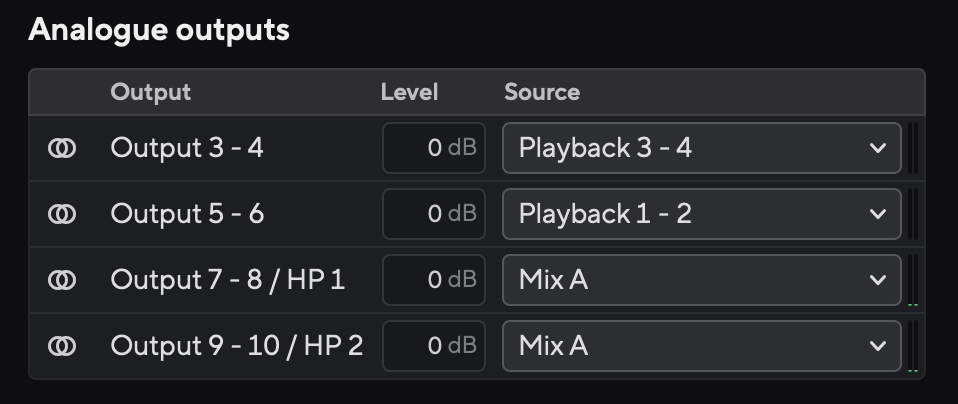

- Under Analogue outputs, set the analogue output in which your 1/4 inch jack cables are connected to, to the source in which you would like to loop back. In this instance, we'll be sending Playback 1-2 to Output 5-6.
- Open your DAW.
- Set the input of your DAW to the analogue inputs in which your Loopback jack cables are connected to.
Audio should now be looped back into your DAW.
Focusrite Control
S/PDIF
- Open Focusrite Control.

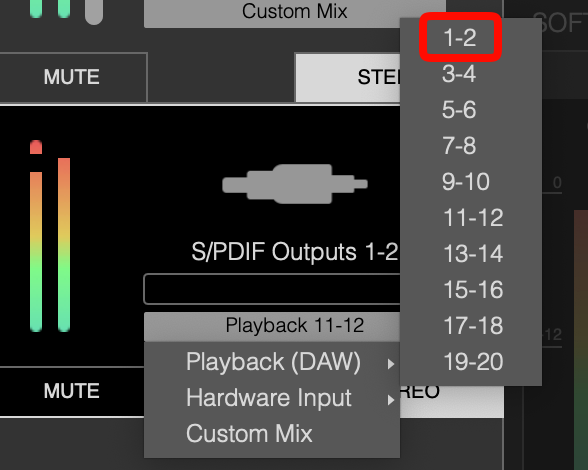

- Under Outputs, scroll down to find the S/PDIF outputs.
- Set this to the source in which you would like to loop back. In this instance, we'll use Playback 1-2.
- Open your DAW.
- Set the input of your DAW to the S/PDIF input on your interface. If you are unsure of this, please see the User Guide for your interface.
Audio should now be looped back into your DAW.
Analogue I/O
- Open Focusrite Control.

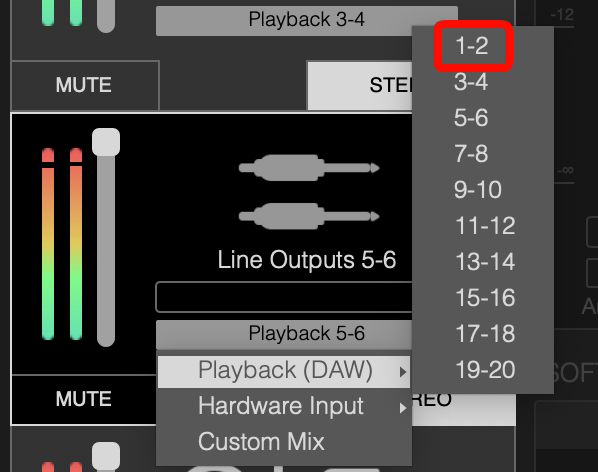

- Under Outputs, scroll down to find the analogue output in which your 1/4 inch jack cables are connected to.
- Set this to the source in which you would like to loop back. In this instance, we'll use Playback 1-2.
- Open your DAW.
- Set the input of your DAW to the analogue inputs in which your Loopback jack cables are connected to.
Audio should now be looped back into your DAW.
