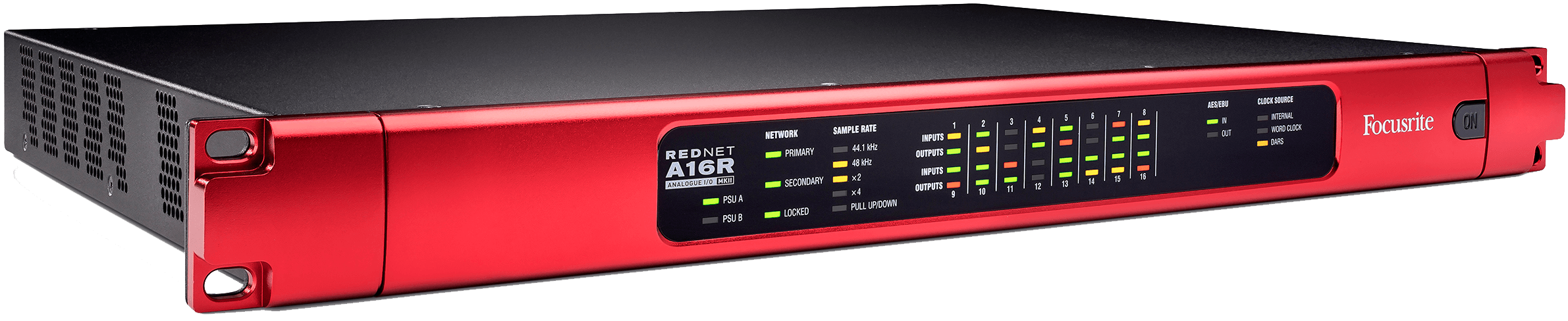

Applies to: RedNet A16R, RedNet A16R Mk II

In addition to the same feature set of its predecessor, the main improvement of the RedNet A16R MkII is the addition of input and output trim controls on a per-channel basis. This control is accessed within the RedNet Control software.

The +24dBu/+18dBu toggle is still present but we have added this continuous trim control.

This allows precise calibration of all inputs and outputs, making the process of accurate alignment of connected equipment more straightforward.

There are saveable profiles in RedNet Control to allow you to recall the input and output trims to 1dB resolution.

We have included software switches in RedNet control for Dim and Mute over independent I/O channels.

Finally, we have improved the hardware of the units to run cooler and more efficiently.

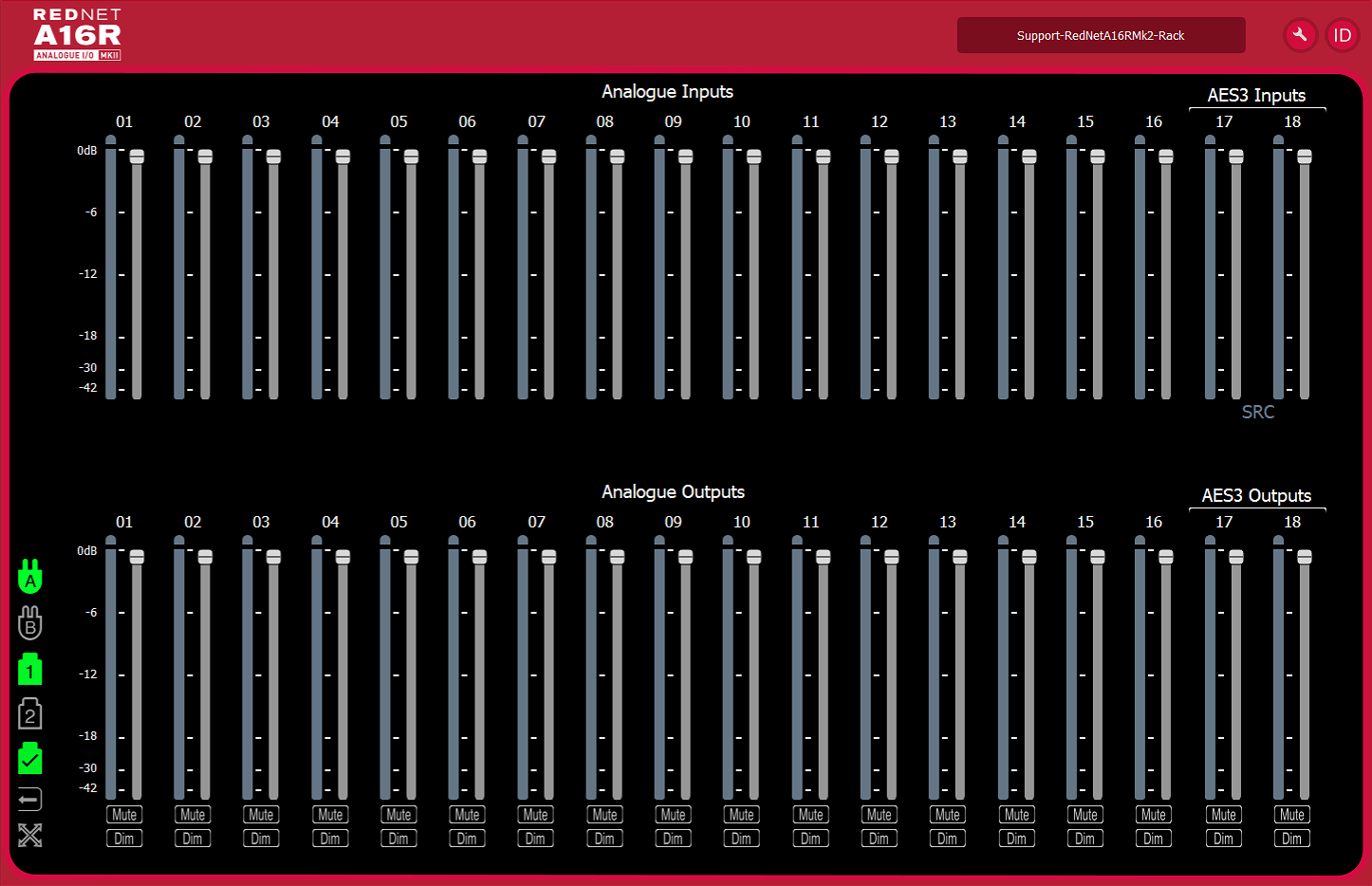

RedNet Control Plugin for the RedNet A16R MkII:
