Applies to: Red 4Pre/8Pre/8Line/16Line

The Dante ports on the Red Range can be set to either 'Switched' or 'Redundant' mode using Dante Controller, depending on your network requirements.

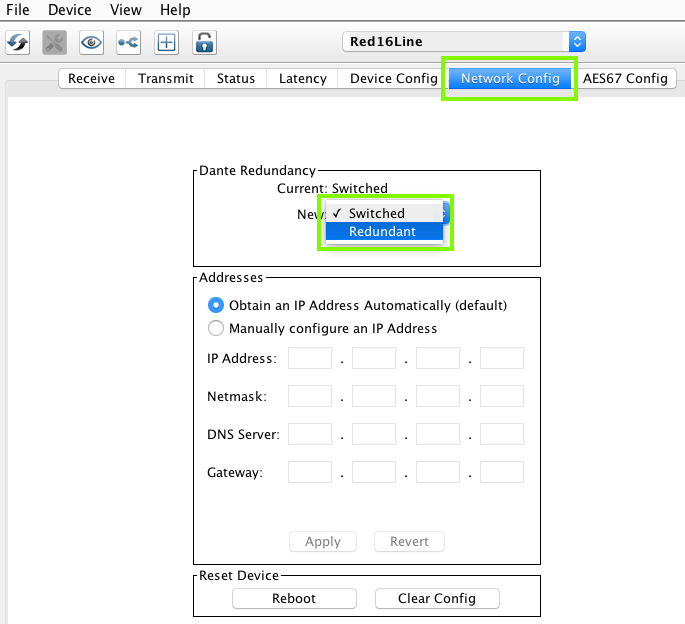

To enable this, in Dante Controller, go to Device > Device View and then select your Red interface from the list. Then, go to the Network Config tab and select 'Redundant' or 'Switched' as required (you'll need to restart the interface after selecting that option for the change to take effect).
