Applies to all USB interfaces

Scarlett 4th Generation

Scarlett 4th Generation devices are provided with either a USB-C to A cable, or a USB-C to C cable, depending on the model.

Scarlett Solo and 2i2 are provided with a USB-C to A cable, and can be connected, and powered via either a USB-A or USB-C port.

Scarlett 4i4, 16i16 and 18i16 are provided with a USB-C to C cable. These devices can be connected to either a USB-A or USB-C port, however some computers may not provide enough power for these devices, indicated by the USB LED flashing red. If this is the case for you:

• Use the included USB cable in the box.
• Connect the USB-C to C cable directly between your Scarlett, and computer.
• Use the included USB-C power supply, connecting to the port labelled 5V DC on the Scarlett.

 For more information on this, see below:

Scarlett 16i16 and 18i16 4th Gen USB-C bus power requirements

Scarlett 18i20 is provided with a USB-C to C cable, and can be connected to either a USB-C or USB-A port. Scarlett 18i20 requires the IEC power connection to power the unit.

Clarett+ and Scarlett 3rd Generation

Clarett+ and Clarett USB interfaces ship with two different USB cables: a USB-C to A cable and a USB-C to C cable.

Scarlett 3rd Generation devices are provided with only a USB-C to A cable, but can be used with a USB-C to C cable.

You can therefore connect these devices using either:

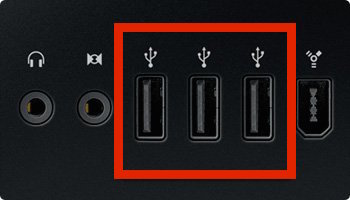

A USB Type-A (2.0 or 3.0) port:

Or a USB Type-C port:

Scarlett 3rd Gen and Clarett USB interfaces can also be connected to Thunderbolt 1 & 2 ports (via an adapter, such as using a Thunderbolt 2 Dock which includes USB ports) or Thunderbolt 3 ports (using a USB-C to USB-C cable). Please see this article before using a Thunderbolt 3 port.

Regardless of which connection you use, the interface will still operate and function as a USB 2.0 device, and performance will remain the same.
