Applies to:
- Scarlett Solo, 2i2, and 2i4, (1st and 2nd Gen)
- Scarlett Solo, 2i2, and 4i4 (3rd & 4th Gens)
- Vocaster One and Vocaster Two
These instructions only apply to iPad/iPhone models that feature a lightning connector, if you have an iPad with a USB-C connector, refer to this article.
The Scarlett/Vocaster range of audio interfaces are class-compliant. This means that they can use the core audio driver built into iOS. We do not officially test or support these bus-powered interfaces with iPads or iPhones using a lightning connection, however, we expect them to work.
If you have a Scarlett 3rd, 4th Gen or Vocaster interface, please make sure you update the firmware on your interface first, before connecting it to an iPad. Refer to this article for more information.
In addition to the included USB cable, in order to connect your interface to an iPad/iPhone, you will need the following:
- An official Apple Lighting to USB 3 camera adapter or an official Apple USB to Lightning Adapter
- A powered USB hub, to power your Scarlett.
If using a regular Apple USB to Lightning Adapter or Apple Lightning to USB 3 Camera Adapter, you should connect the devices in the following order:

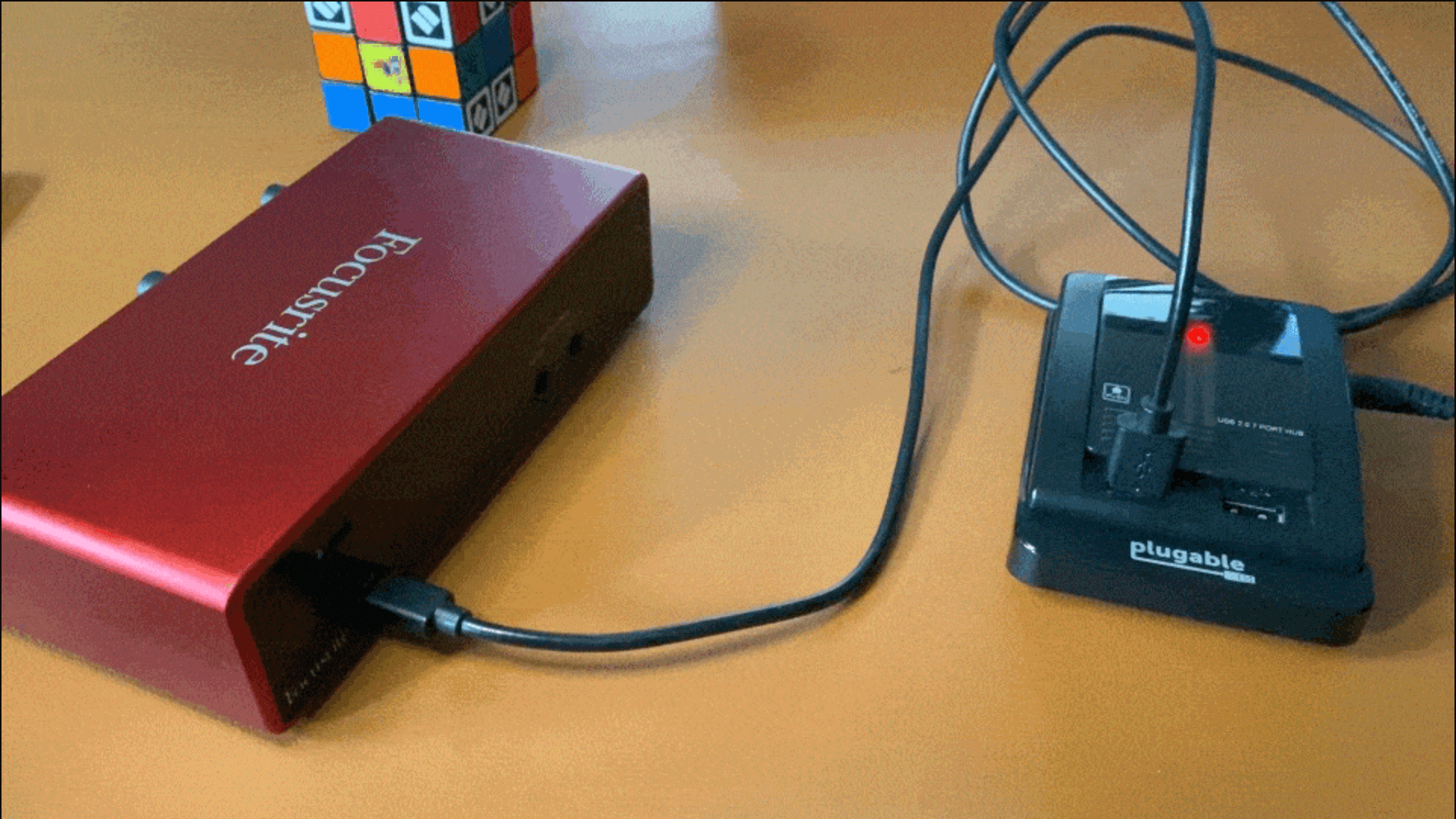

The interface to the powered USB hub via USB

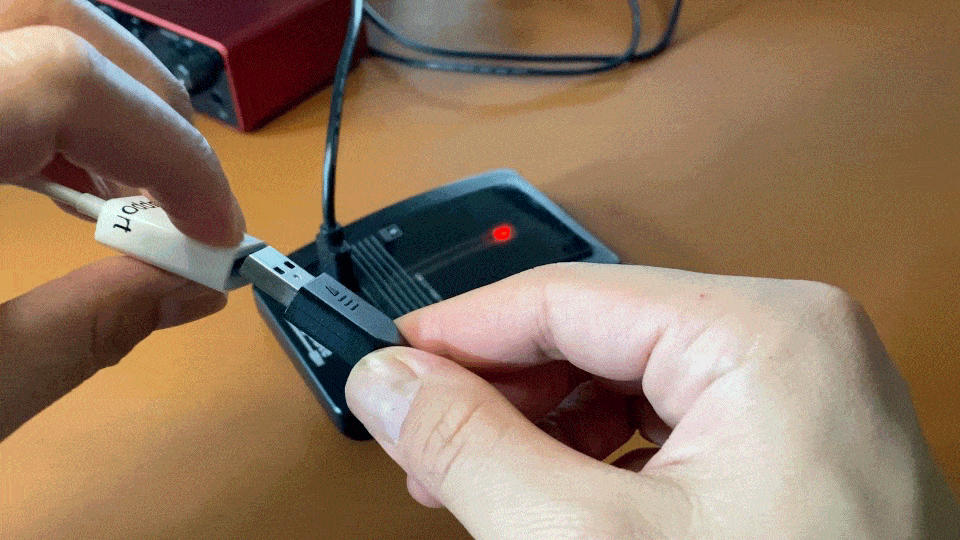

The USB hub's input port to the Apple Lightning Adapter.
The Apple Adapter to the iPad/iPhone.

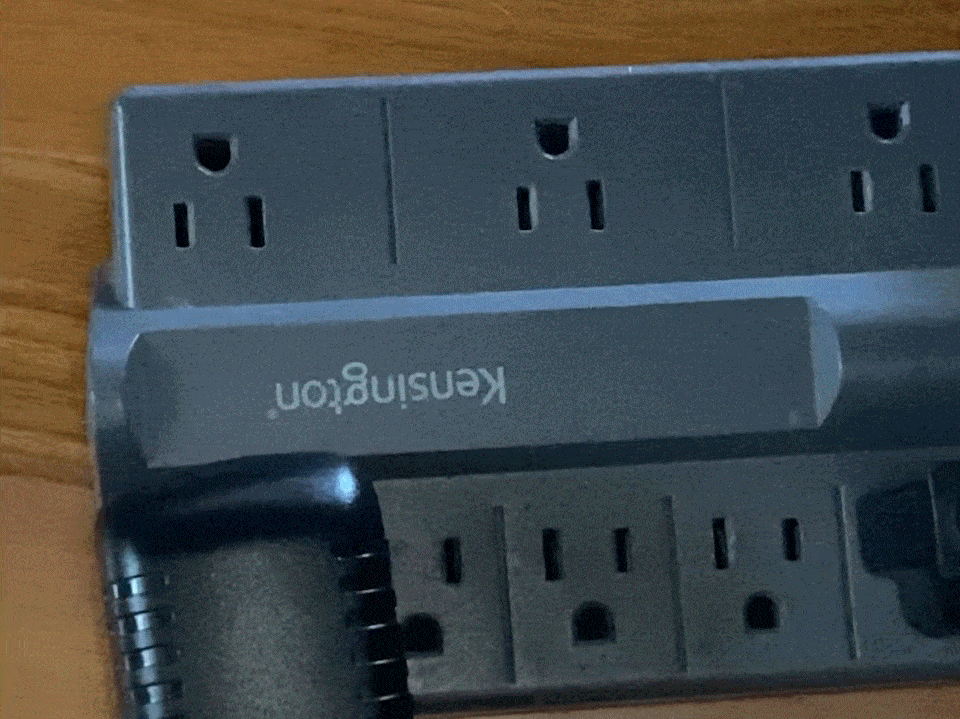

The Powered USB hub mains adaptor to a power source.

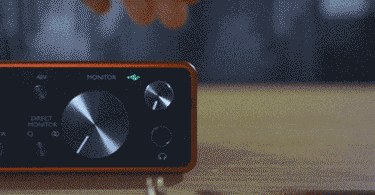

Unlock the iPad/iPhone, and you should then see a green USB light on the front of your interface.
Once connected, plug headphones or speakers into your interface.

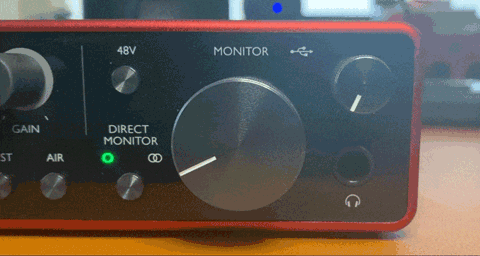

- Play any audio from your iPad/iPhone, such as any video on YouTube, and slowly turn up the monitor level on the interface. Your iPad should now be sending audio through your interface's outputs.
- From here, you should be able to use your interface as an output and input device for your iPad/iPhone, with apps that allow you to use external audio devices, such as GarageBand, or the Focusrite Impact app.
Scarlett 4i4 3rd gen will need to be first connected to a computer to change routing and settings in Focusrite Control.
Scarlett 4i4 4th gen will need to be first connected to a computer to change routing and settings in Focusrite Control 2.
