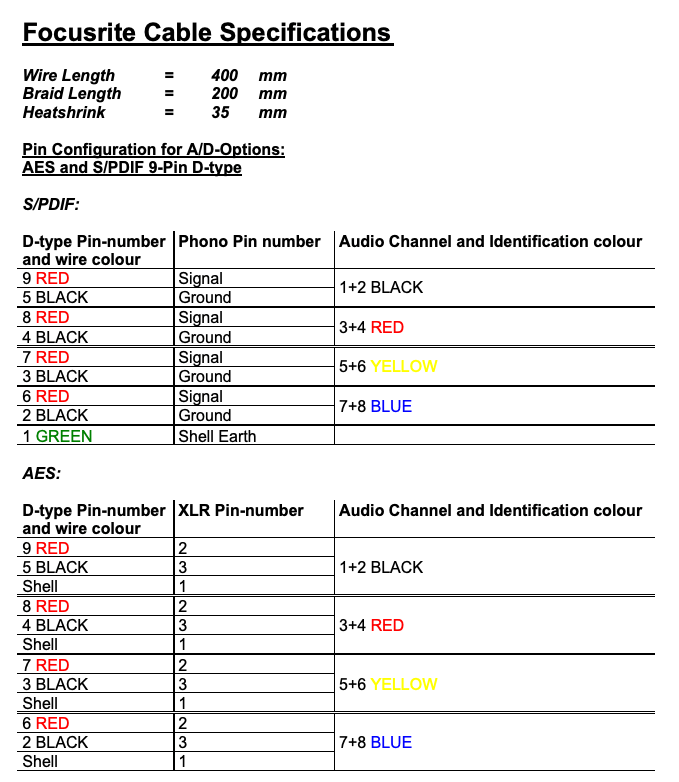

The pinout of the 9-pin D-sub connector on the A-D output card for the ISA 428 can be found in the following PDF and in the image below:
PDF: ad9pinconfig.pdf
How is the ISA 428 MkI 9-pin ADC connector wired?
