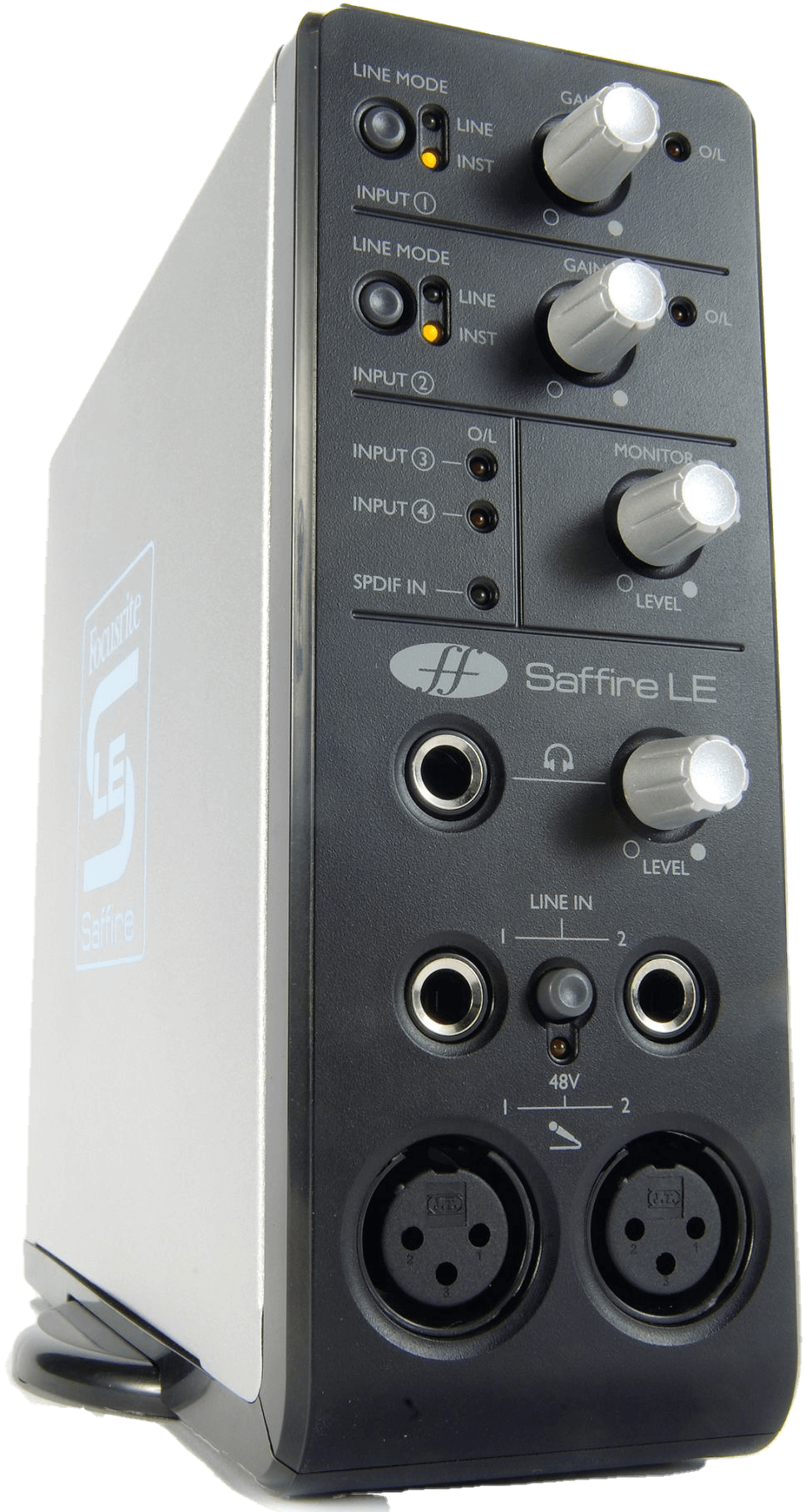

This applies to the Legacy Saffire LE:
If you cannot get any sound out of your headphones, either from the inputs, or playing back from a computer, please try the following steps:
- Press the “Track” button. This will activate tracking (or recording) mode, where the Saffire LE outputs can be used to monitor a mix of inputs. All cross faders will be in a central position and all audio inputs will be routed to the outputs. This should enable you to hear any audio entering the Saffire LE through the analogue inputs.
- Ensure the output levels are all turned up, both in the software and on the hardware. If hardware control is turned on (the button marked “H” in each output section), the level in your Saffire LE software will be controlled by the “Monitor” control on the front of your Saffire. It is worth noting the headphone outputs are outputs 3/4. Ensure the output is not dimmed or muted, that no other channels are soloed, and that the headphone output level is turned up on the front of your Saffire LE.
- If you still can’t hear anything, please download Settings File 1, and load it up in Saffire Control LE.
- Have you checked your headphones on another device to confirm that they are not faulty?
If you can get sound out of your headphones from your inputs, but not from your computer, please go through the following steps:
- Have you got your Saffire LE selected as the Audio Input/Output device on your computer and/or your software? If you are unsure, please consult the manual for the software that you are using.
- Are you sending Audio to the correct outputs on the Saffire? The headphone outputs are outputs 3/4.
- To hear the sound being played back from your computer; you need to ensure the input/playback balance control is set to playback. This is the horizontal slider in each output section, and it needs to be set to its right-hand position.
- (NB: Pressing the “S/CARD” button in Saffire Control LE will set each output pair’s cross fader to the extreme right position, and route audio channels to their corresponding outputs on the Saffire LE)
- If you still cannot hear any playback sound, please download Settings File 2 and load it up in Saffire Control LE, ensuring that the sound from your computer is being played back on channels 3/4.
